Keep-Reef LED Series, from JAPAN
Special LED lights for aquarium facilities and research institutions
to properly color management and nurture corals in a healthy way!
Reef Depth Spectrum System SPECTRA SP200
Coral-growing LED light with reef depth spectrum that meets the rigorous demands of aquariums and research facilities!
- Depth Spectrum 0-30m (Spectrum intensity safes)
- PPFD FLAT Distribution (new V-beam Reflector)
- Lunar function (Realistic Ray Intensity)
- Thunder Schedule (Up to 3 mixed)
- Connection via router * Up to 10 units
- Synchronized by WiFi * Up to 3 units (+APP)
- OLED & All functions can be operated by the unit
- Advanced APP (iOS/Android)
- Variable Drive (1W/2W/3W Drive)
- 95mm large FANRemovable FAN Cover
- High-Ranked LED×70 (74 chips)
- 8 Channel Dimmer (Useful Fluorescent Check)
- Thermal Protection (With Emergency Stop)
Reproducing the water quality of a coral reef is very time-consuming...
That's why we want to make coral reef ambient light reproduction an easy task!
With SPECTRA, it's very easy to create the correct reef depth spectrum!
Let's Coral Color Management!

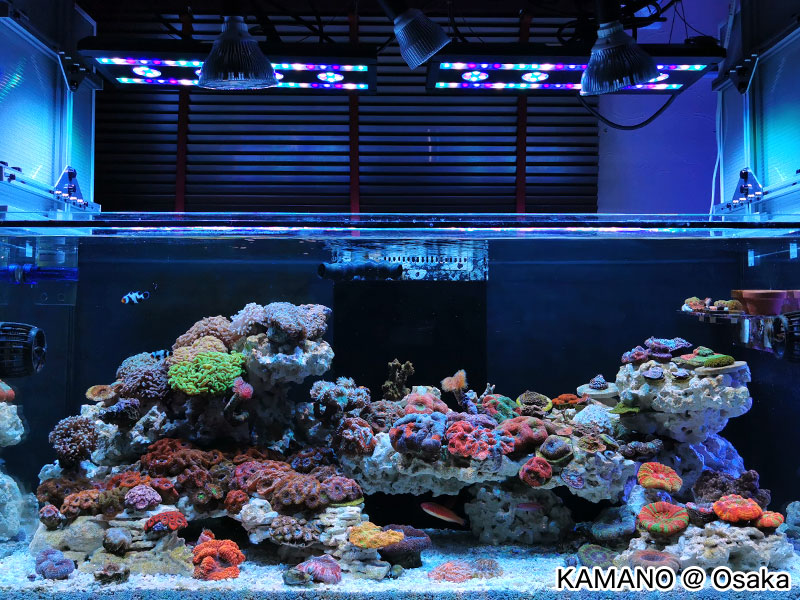

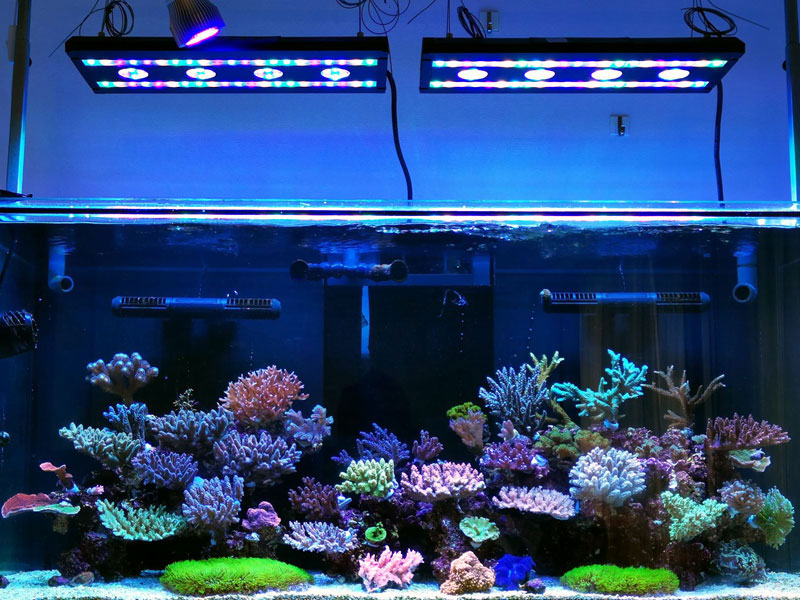

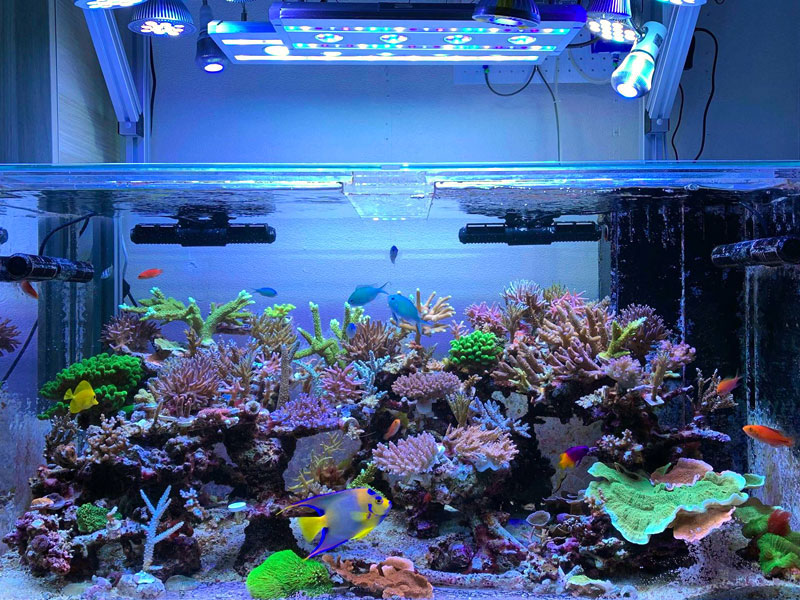

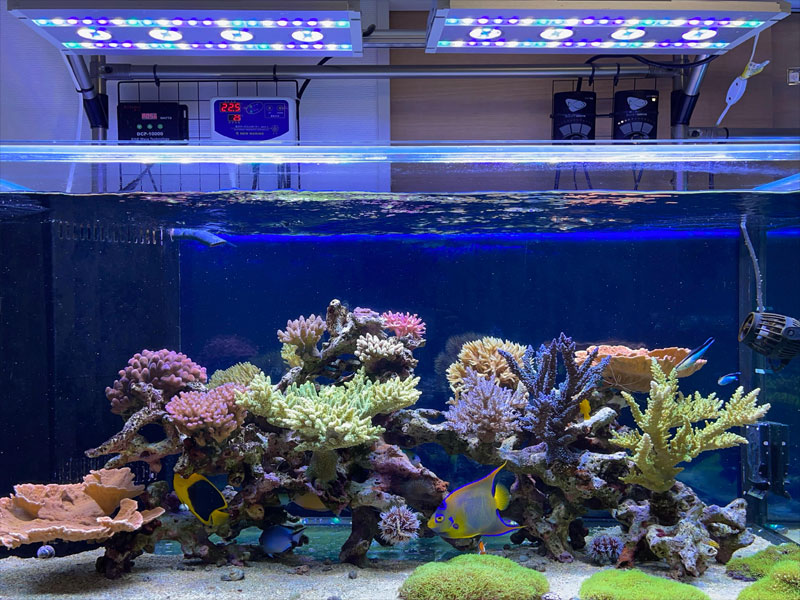

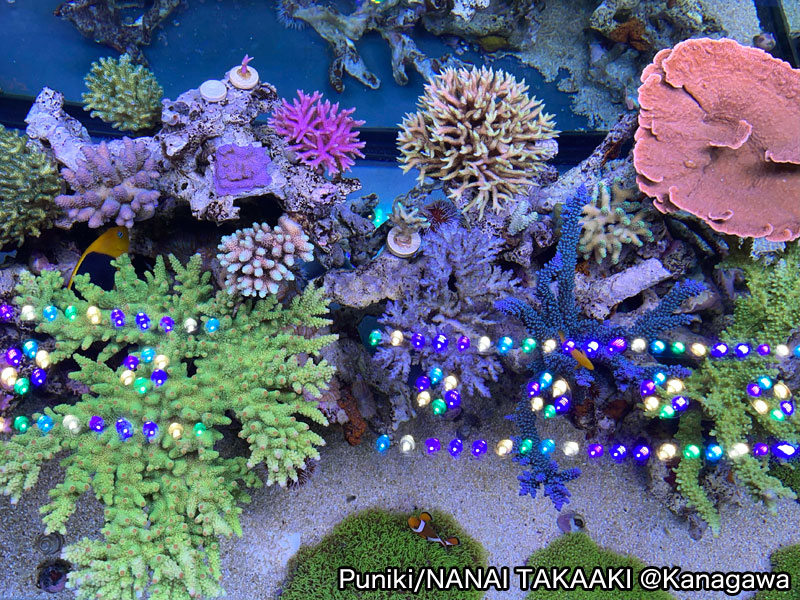

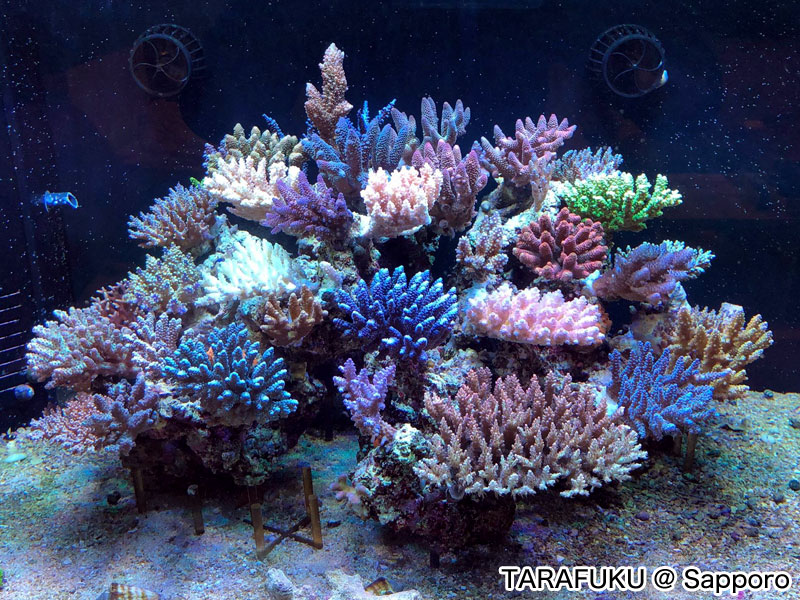

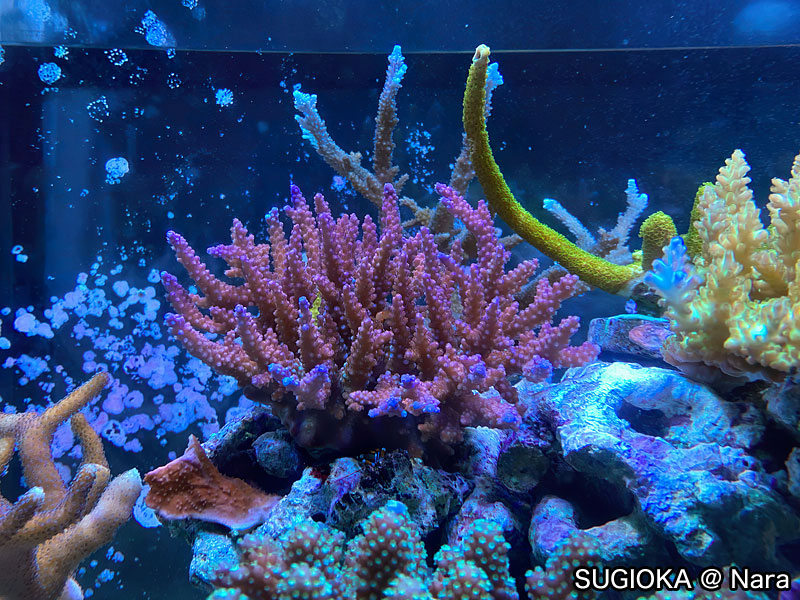

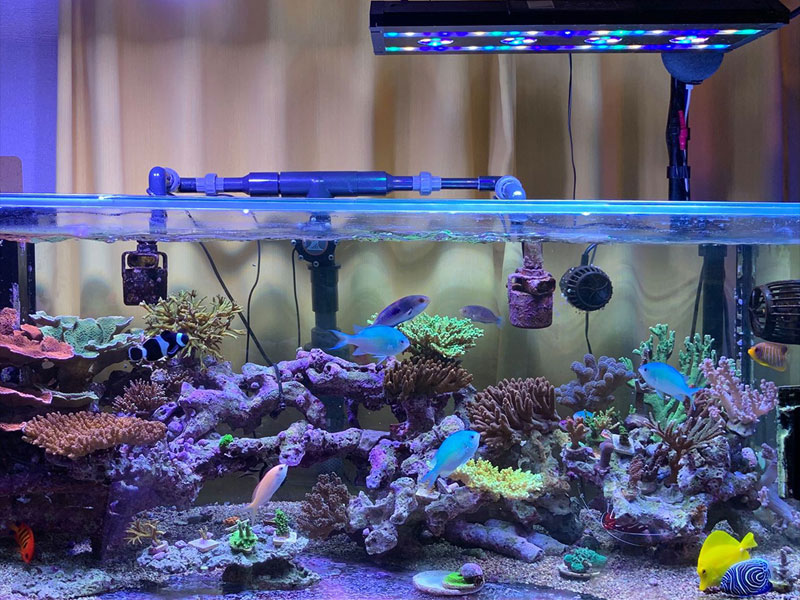

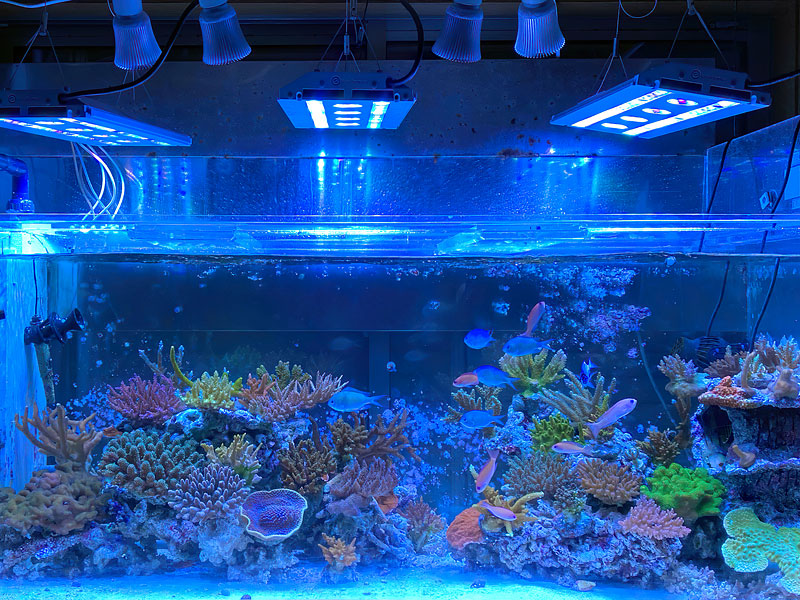

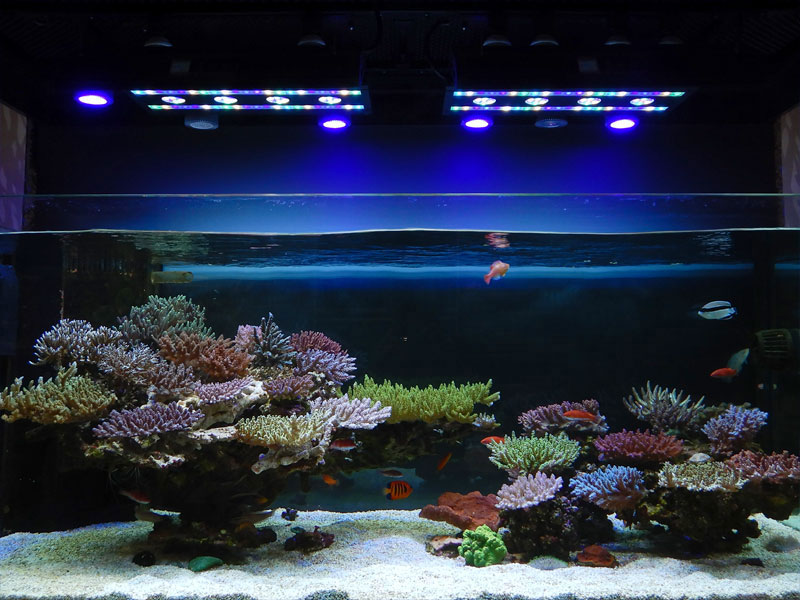

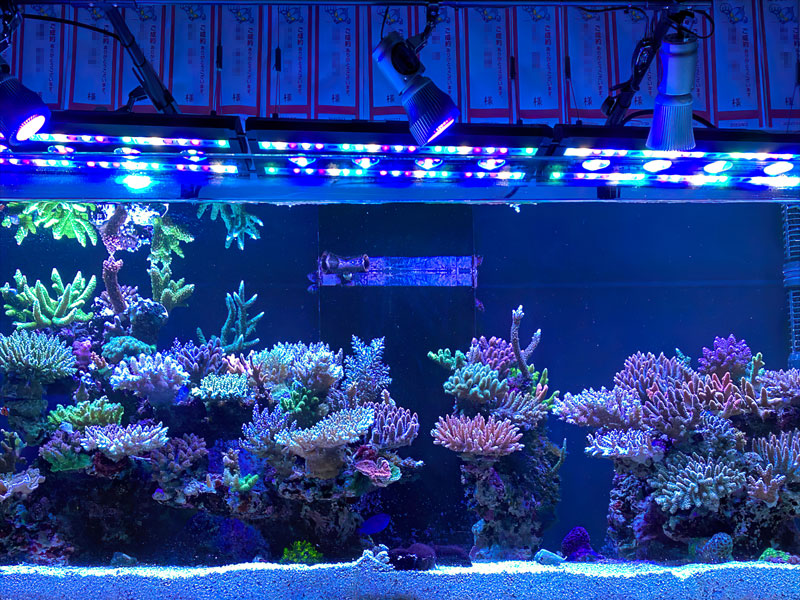

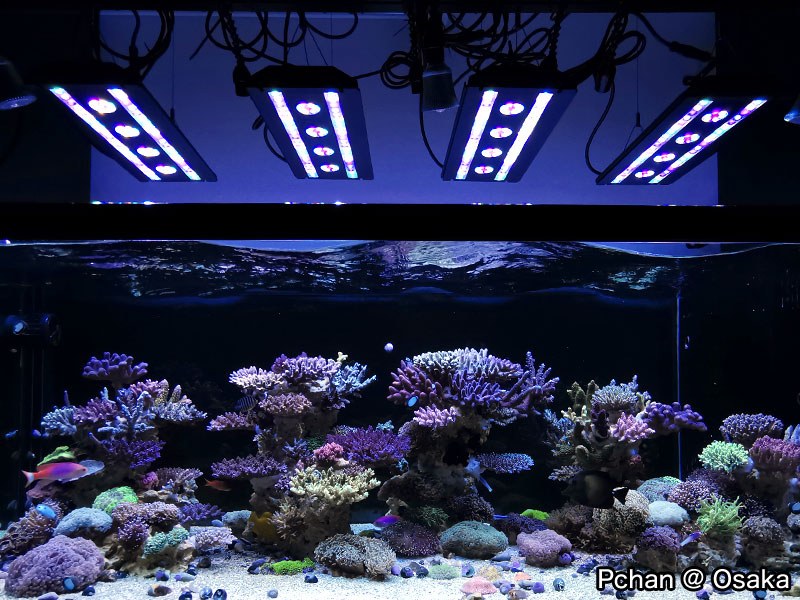

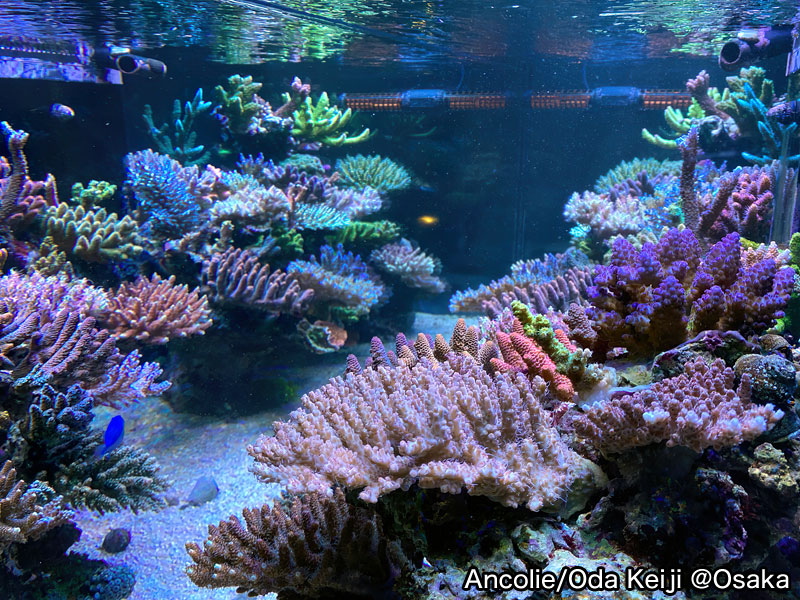

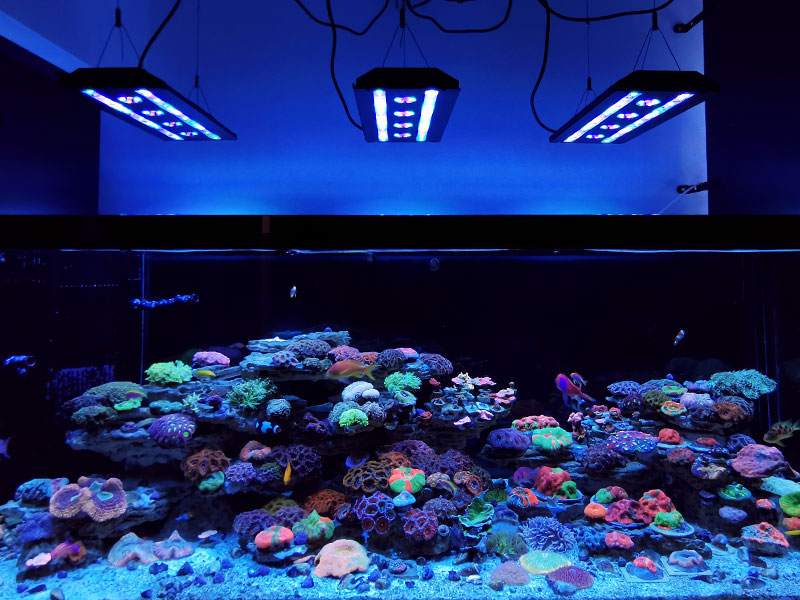

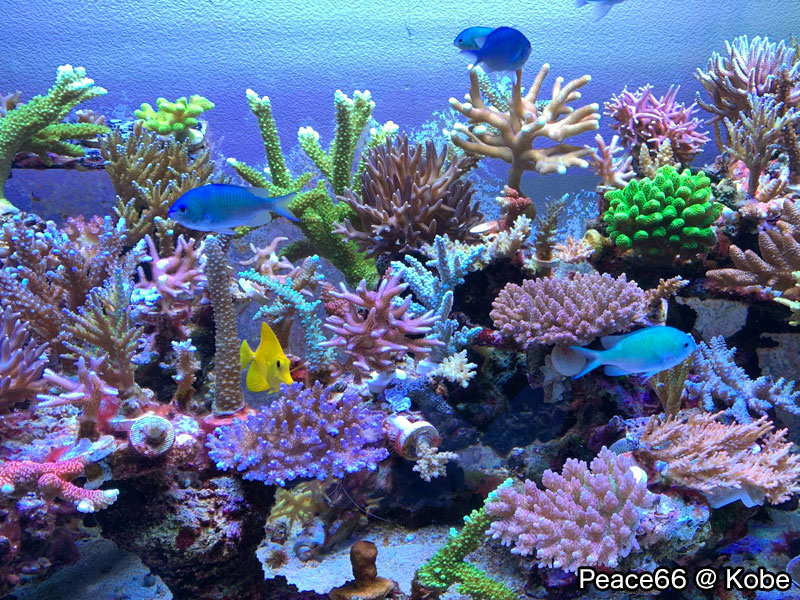

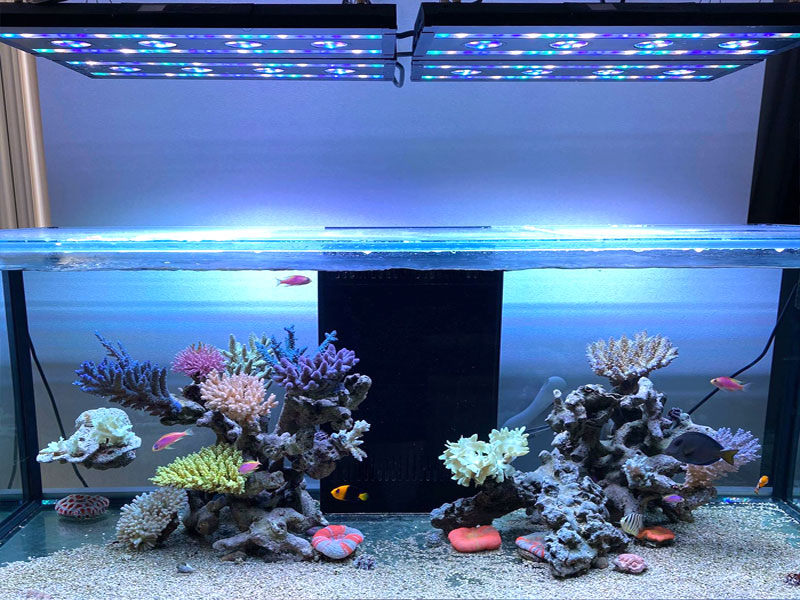

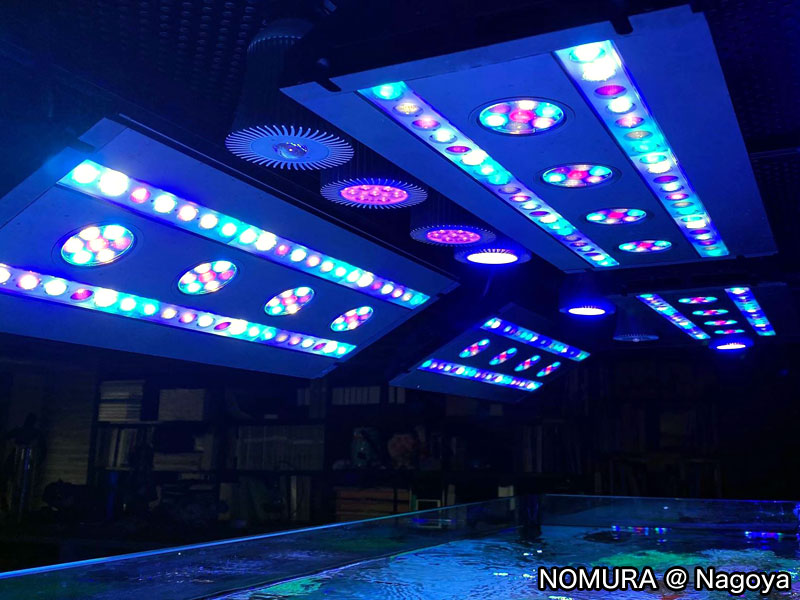

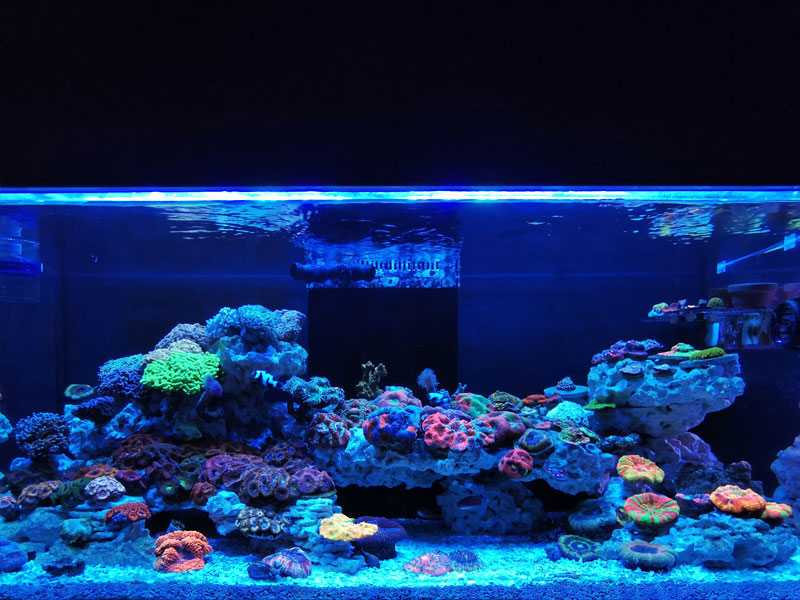

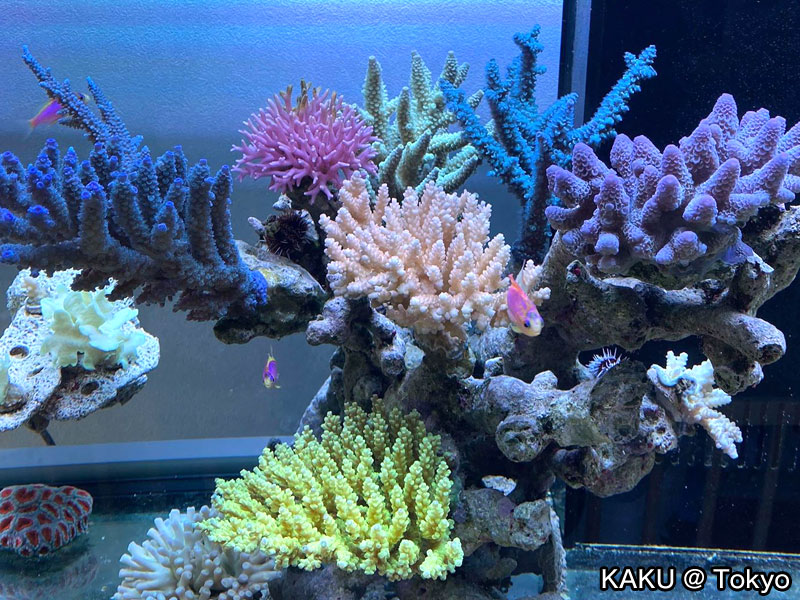

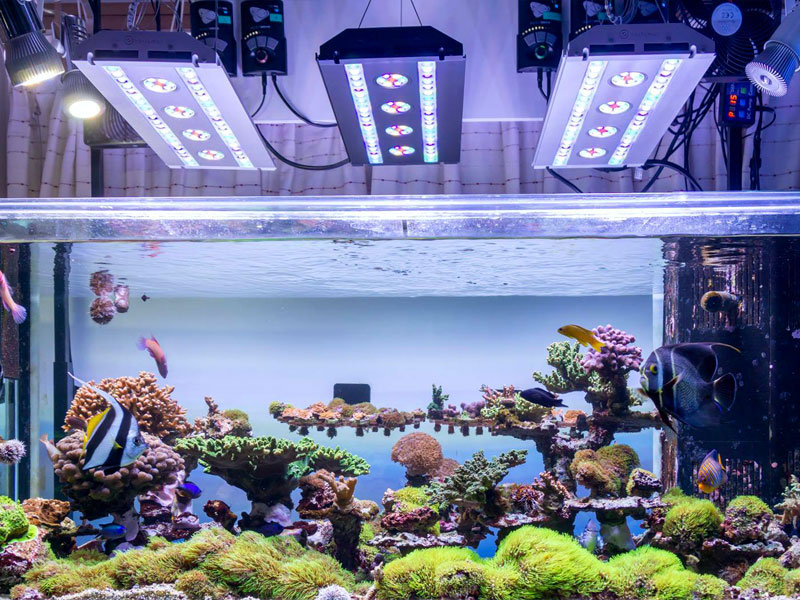

SPECTRA Customer's Tank
Click on the number or swipe the photo.
SPECTRA boasts 3 new features that are coral-friendly
Coral-friendly 1. Reef Depth Spectrum of SPECTRA
Since SPECTRA comes pre-installed with these reef depth spectra from 0-30m, you can easily specify that depth spectra by selecting the depth at which the coral was inhabited.
That alone is enough for coral photosynthesis and easily provides the right light environment.
On top of that, "I want to make the color more beautiful!"
determine whether that color is fluorescent protein or chromoprotein,
and then arrange the default depth spectrum appropriately.
Example) CFP(Cyan fluorescent protein) → Increase the UV/Violet channel by 10-20%.
Example) BFP(Blue fluorescent protein) → Increase the UV/Violet channel by 20-30%.
Yes, SPECTRA reef depth spectrum allows us to customize the wavelength intensity to suit the desired corals color.
In addition, SPECTRA depth spectrum is equipped with a mechanism that automatically preserves the blue-band (400-500nm) wavelength intensity common to all depths, so that the amount of light in the deep field does not exceed the amount of light in the shallow field.
This is the first care function for the coral-friendly SPECTRA.
* Avoid extreme wavelength intensity, as excessive wavelength intensity can cause photoinhibition and bleaching.
SPECTRA's depth spectrum is aquarist-friendly.

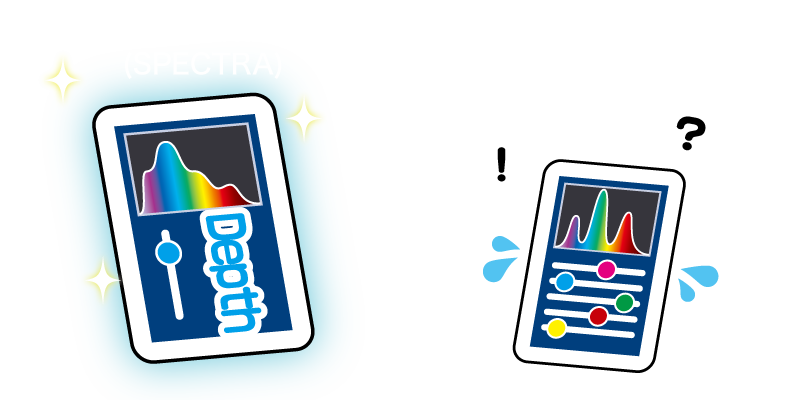

SPECTRA has two dimming systems, "Simple Dimmer (based on depth)" and "Expert Dimmer (for professionals)",
but unless you are familiar with coral pigments, you won't know what wavelengths to use and which intensity to use,
and the same is true for other lights.
In this regard, SPECTRA can first set a rough depth of water with simple dimming and then arrange
it appropriately with expert dimming to achieve the optimal light environment without any hesitation.

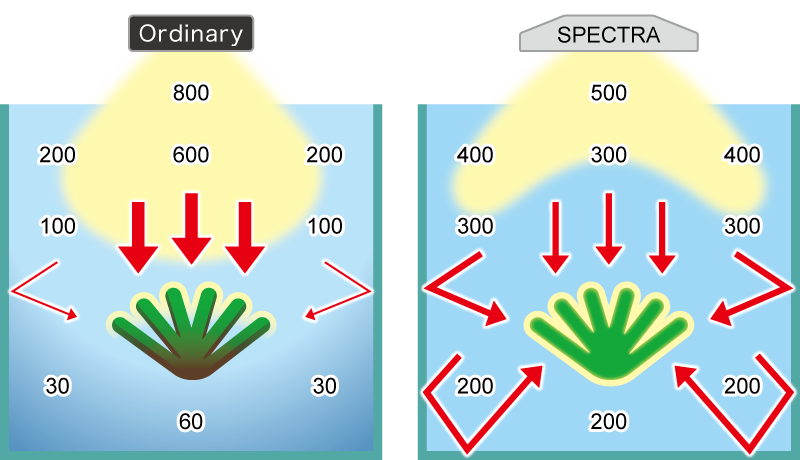

Coral-friendly 2. SPECTRA V-beam reflector
SPECTRA has succeeded in the original development of an optical reflector that has an infinitely flat light intensity distribution with less light intensity loss than conventional optical lens systems. It is called "V-beam reflector".
Its characteristics are exactly like a T5 fluorescent lamp, and the inherent contrast difference between light and dark LED has been largely eliminated.

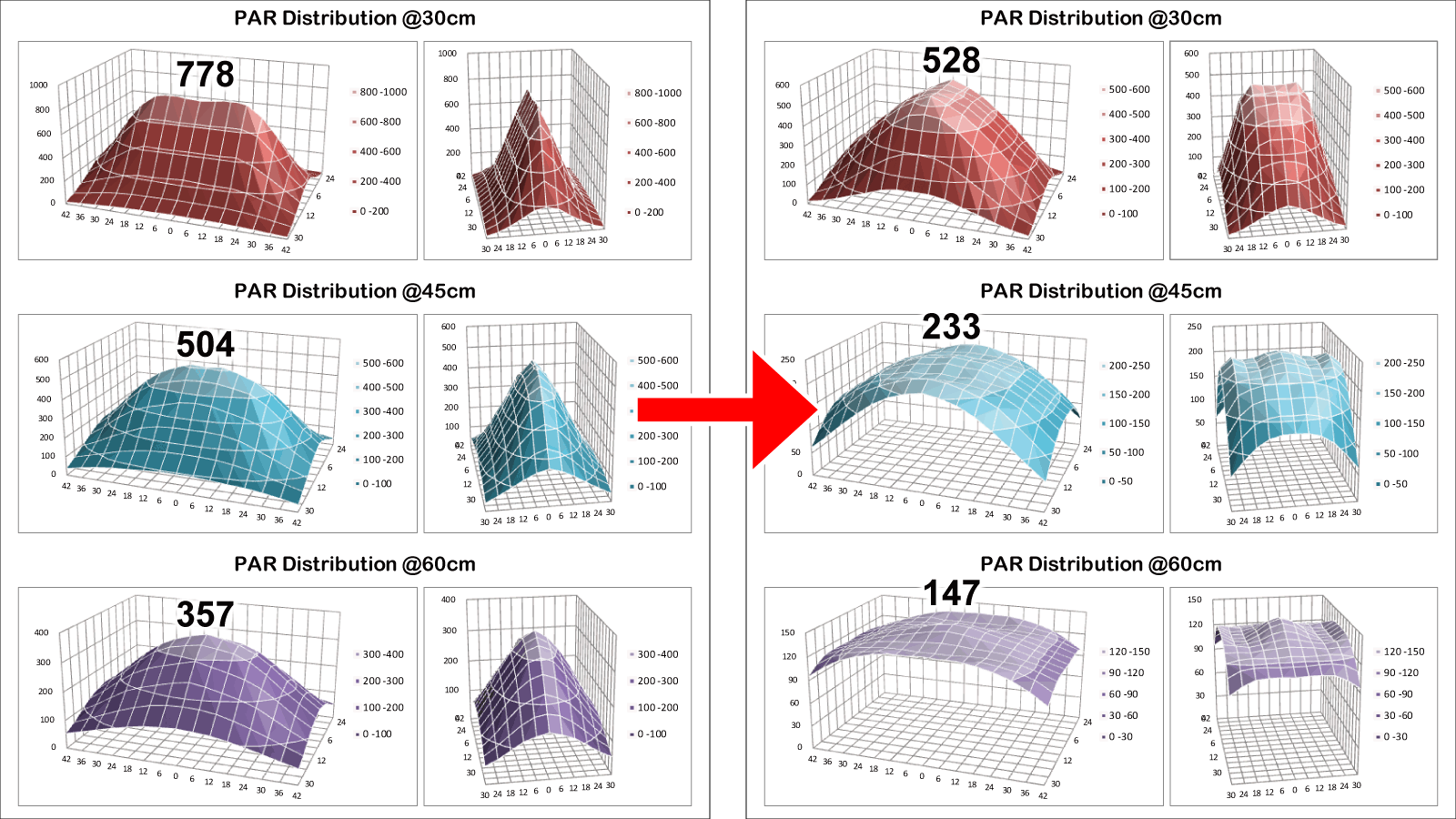

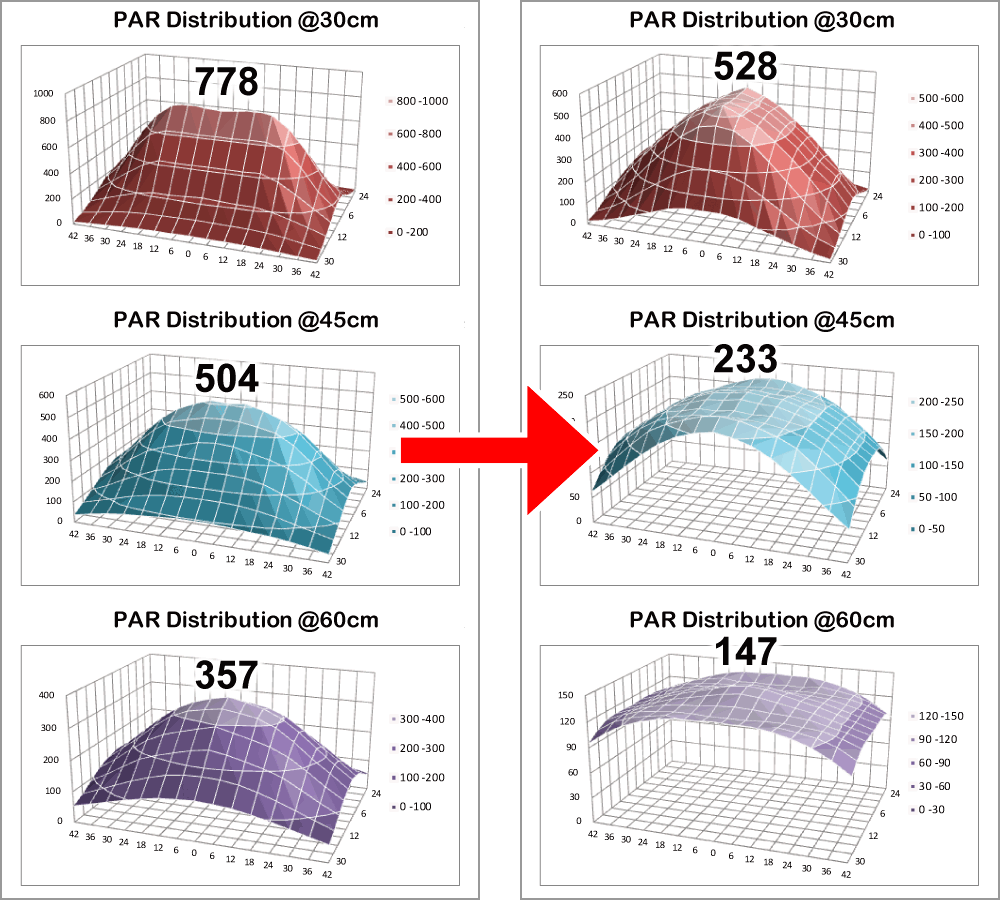

For example, take a look at the graph below. The left is the light intensity distribution of the old KR93SP and the right is the SPECTRA. You can see that the light intensity distribution of the third row of 60cm (purple) has been improved to infinitely flat.
* In fact the light distribution from a depth of water shallower than "60cm" will be uniform because of the reflections obtained on the glass surface.
First of all, the light reaches every corner of the tank by using the reflection of the tank's glass surface
to illuminate every part of the tank evenly, and the light hits the sides and front of the coral,
promoting beautiful pigmentation throughout the coral.
Secondly, because strong light is not concentrated directly underneath the lighting,
coral does not suffer from light inhibition, bleaching, or other "burn" phenomena,
even if the coral is placed directly underneath the lighting.
This is the second care function for the coral-friendly SPECTRA.
* On the other hand, the whole tank will be brighter, so you may need to be creative about where to place the LPS.
Coral-friendly 3. SPECTRA's Lunar cycle function
SPECTRA also paid a lot of attention to lunar ray.
What a great way to reproduce the brightness of realistic lunar ray!
During normal operation, SPECTRA is controlled as a "percentage (0-100%)",
but during moonlighting it is controlled as a "basis point (0.00-100.00%)"
(a second decimal place is also displayed on the LCD panel).
This mechanism allows the correct lunar ray spectrum to be illuminated
even with a faint lunar ray setting of 1 lux brightness.
This is the third care function for the coral-friendly SPECTRA.
* The depth spectrum of your choice can be assigned to the lunar spectrum.

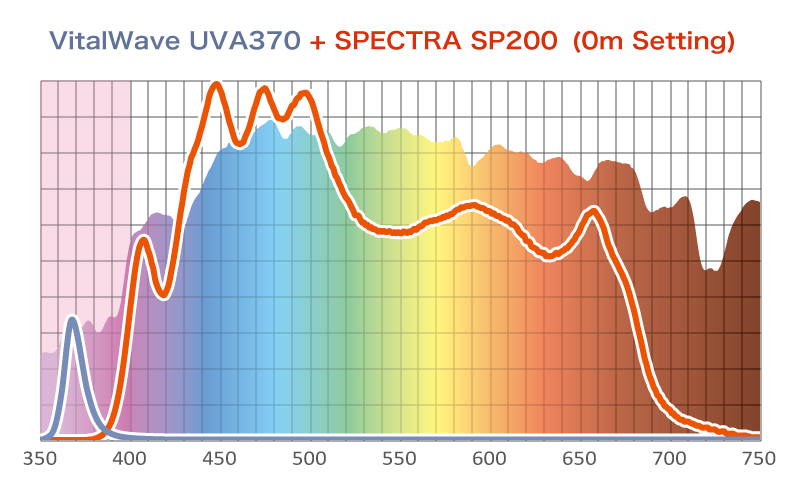

Add VitalWaveII UVA370 to SPECTRA becomes full sunlight!
In addition, by adding a UVA 370nm wavelength to SPECTRA, full-spectrum sunlight, which also covers UV rays, can be reproduced. The 400-700nm range of visible light is assigned to SPECTRA, and the 350-400nm UVA region is assigned to VitalVaveII UVA370. This makes it possible to meet the light requirements of all photosynthetic organisms at a high level, not only terrestrial plants, but also aquatic plants, sea grasses and corals.
The UVA region is a wavelength that has a significant impact on pigmentation mainly as a UV defense, promoting redness, such as anthocyanin in terrestrial plants and fluorescent protein and pigmentation responses in corals.
How did you feel?
Does your coral want SPECTRA?
Other Features
Thunder Scheduling Function

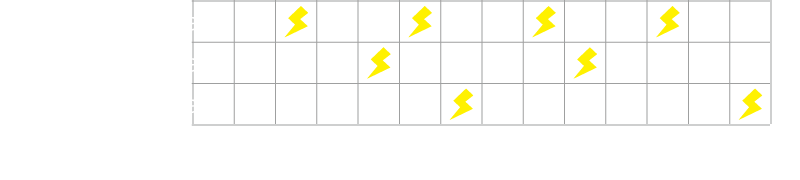

The thunder scheduling feature has three presets, each of which can be configured with an interval of occurrence, time of occurrence, and number of flashes, so that complex lightning effects can be reproduced when used together.
* The thunder spectrum can be assigned to the depth spectrum of your choice.
Function to connect via router
If you use your home WiFi router, you can control up to 10 units SPECTRA from your smartphone. Also, since it is via the router, you can operate it while you are on the Internet.
* Please use the 2.4GHz band as the 5GHz band is not supported.

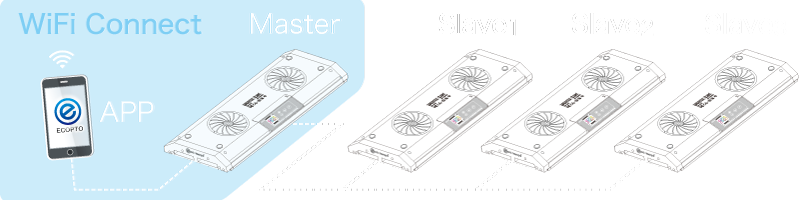

WiFi synchronization function
Even if you don't have a WiFi router at home, SPECTRA can synchronize 1 parent device(Master) with 4 children(Slave *including smartphones) via WiFi communication.
* If you want to operate with 2 smartphones, you can operate up to 2 SPECTRA.
* Just by setting the dependency, that unit becomes a child(Slave) that synchronizes with the parent(Master).

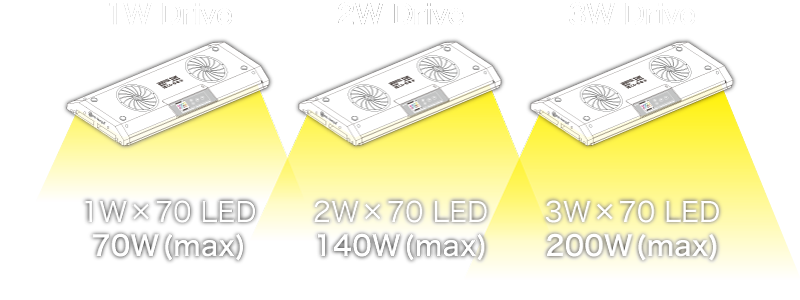

Variable drive function
It is possible to increase or decrease the brightness of the entire lighting in three levels without changing the already set program. For example, if you change the installation height of the light, you would normally have to change all the dimmers for each stage of the auto setting, but use the variable drive function, you can switch the product's power consumption to 70W mode, 140W mode, and 200W mode.

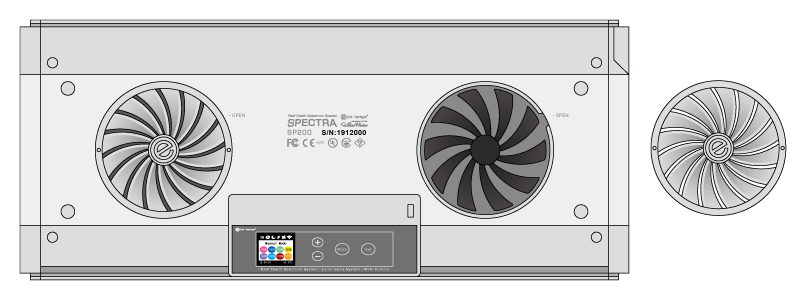

Equipped with two large 95mm FANs & Removable FAN Cover
Since the power consumption of the SPECTRA is up to 200W, two large 95mm fans are installed to ensure both airflow and quietness. Also, the fans do not rotate constantly, but instead monitor the heat sink temperature and activate it when it exceeds 35 degrees. In addition, the fan cover is detachable so that it can be washed in water when cleaning dust from the fan.

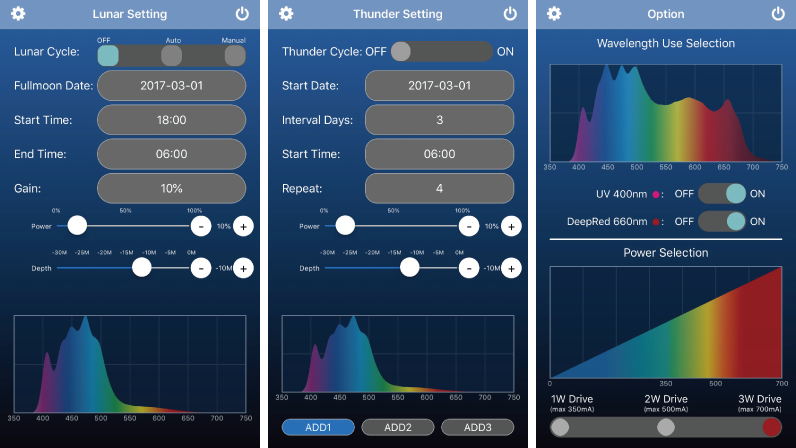

Take advantage of an APP for your smartphone!
To operate SPECTRA on your smartphone, download the APP for your smartphone by searching for "ECOPTO-SP"
in the APP store
or Play store, or install it from below.
APP name : "ECOPTO-SP"
Operating Environment : iOS 9.0 and above / Android 4.4 and above
* "ECOPTO/ECOPTO-VW" is an app for VitalWave/VitalWaveII.
for iPhone/iPad
Download from App Store
for Android
Get by Google Play
* Even if you don't have a smartphone, all functions are available at the button on the unit. (except for a few function)
Product Information
Product Specifications
| Model | SPECTRA SP200 | Operation | On Panel, APP(Android/iOS) |
|---|---|---|---|
| Size/Color | 18inch / Silver, Black | Mode | Auto, Manual, Thunder, Demo, (Synchronization) |
| Wattage | 200W (max) | Depth | 0-30m (1m step) * Full wavelength adjustable |
| Power | AC100-240V 50/60Hz | Wavelength Accuracy (8 channels) |
UV : 405-410nm Violet : 430-435nm DeepBlue : 450-455nm Blue : 470-475nm Cyan : 495-500nm DeepRed : 660+680nm CoolWhite : 7000-8000K NeutralWhite : 4000-4500K |
| Dimension | W470×D200×H41mm | ||
| Weight | 2.9 kg (GROSS 5.5 kg) | ||
| LED emitters | Cree, LITE-ON, Epileds | ||
| Beam Angle | 80° V-Beam Reflector | ||
| Monitor | OLED Panel | Disable Switch | UV, DeepRed |
| Radio | WiFi IEEE802.11b/g/n | Variable Drive | 1W Drive(70W), 2W Drive(140W), 3W Drive(200W) |
| Radio Act | R206-000519 | Nature Effect | Reef Depth Spectrum, Lunar, Thunder |
| Safety Standards | FCC, UL, CE, PSE, MIC | Accessories |
AC-Adaptor, Wrench×2,Tank Bracket×2, Stand Arm×4, Wire kit×2, USB cable, User Guige |
| Terminals | mini USB (for Firmware update) | ||
| List price | $1,500.00 |

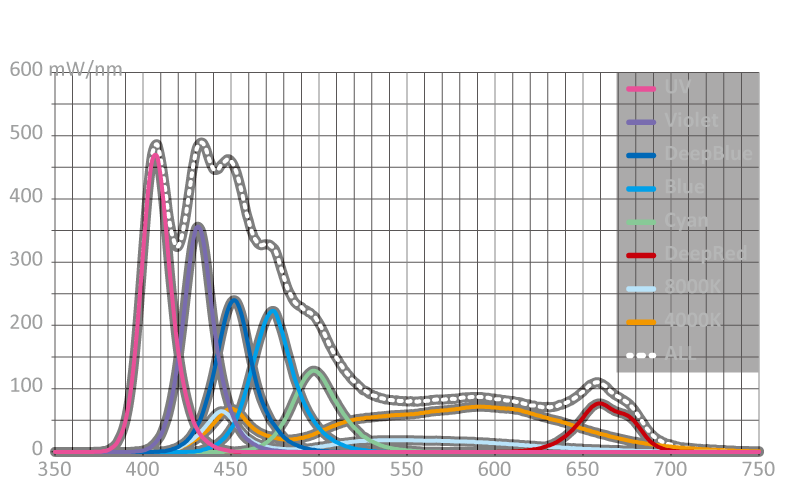

Spectrum Intensity Graph (LED emitters base)
PPFD Distribution Graph
LED Specifications
| Channel | UV | Violet | DeepBlue | Blue | Cyan | DeepRed | 8000K | 4000K |
|---|---|---|---|---|---|---|---|---|
| LED qty | 10 | 10 | 6 | 10 | 10 | 4 | 6 | 14 |
| Range | 405-410nm | 430-435nm | 450-455nm | 470-475nm | 495-500nm | 660+680nm | 7000-8000K | 4000-4500K |
| Brand | LITE-ON | LITE-ON | CREE | CREE | Epileds | Epileds | CREE | CREE |
| Model | LTPL-C034UVH405 | LTPL-C034UVH430 | XP-E2 | XP-E2 | EP-U4545K | Dual chips | XP-E2 | XT-E |
| mW @1W | 600-700mW | 600-700mW | 500-600mW | 40-45lm | 80-90lm | 200-300mW | 140-150lm | 130-140lm |
Appearance and Part Description
Download
- SPECTRA SP200 User's Guide ver 1.9EN [A3 Double-sided printing]
- SPECTRA SP200 Time Table Paper [A4 Printing]
Precautions for use
- Both channels use LED emitters that emit very strong light energy, so never look directly into the light. Danger of going blind!
- Use at a position and angle so that children will not look directly at the light when looking up. Use a side canopy is recommended.
- Although the UV/Violet channel may not seem too bright at first glance, it emits very strong light energy and should never be looked at directly. In particular, UV channel contains strong UV components that are invisible to the eye and may cause blindness if you look directly into the light!
- Do not cover the luminous surface during lighting, or place the luminous surface face down on the floor or table. The acrylic sheet on the luminescent surface may melt or, in the worst case, may cause a fire.
- It is not equipped with water resistance, so be careful not to submerge it in water or expose it to water. It causes trouble.
- If the LCD panel of the unit is blinking, the thermal protection may have been activated. In this case, please check if there is no dust clogging the fan cover or blocking heat dissipation and try to remedy it. After the improvement, press any button on the unit and the blinking will be canceled.
